- 产品型号：LQH44NN系列
- 厂家品牌：村田Murata

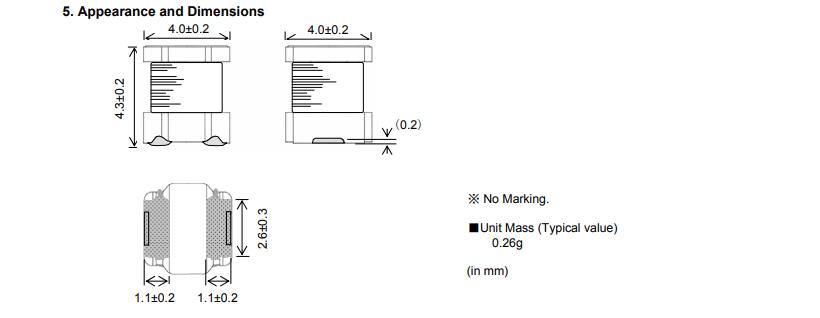

- 产品规格：4mm square
- 包装方式：高度4.5
- 立即订购
-
范围
适用于LQH44NN_03系列片状线圈（片状电感器）

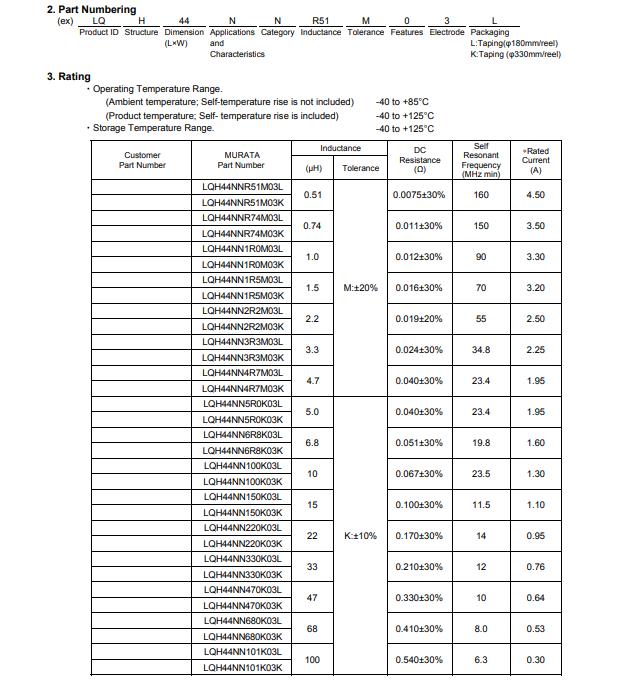

评分
·工作温度范围。
（环境温度；不包括自身温度上升）-40至+ 85°C
（产品温度；包括自身温度升高）-40至+ 125°C
・保存温度范围。 -40至+ 125°C
LQH44NN系列 片状线圈片状电感器型号：
LQH44NNR51M03L LQH44NNR51M03K LQH44NNR74M03L LQH44NNR74M03K LQH44NN1R0M03L LQH44NN1R0M03K LQH44NN1R5M03L LQH44NN1R5M03K LQH44NN2R2M03L LQH44NN2R2M03K LQH44NN3R3M03L LQH44NN3R3M03K LQH44NN4R7M03L LQH44NN4R7M03K LQH44NN5R0K03L LQH44NN5R0K03K LQH44NN6R8K03L LQH44NN6R8K03K LQH44NN100K03L LQH44NN100K03K LQH44NN150K03L LQH44NN150K03K LQH44NN220K03L LQH44NN220K03K LQH44NN330K03L LQH44NN330K03K LQH44NN470K03L LQH44NN470K03K LQH44NN680K03L LQH44NN680K03K LQH44NN101K03L LQH44NN101K03K LQH44NN151K03L LQH44NN151K03K LQH44NN221K03L LQH44NN221K03K LQH44NN331K03L LQH44NN331K03K LQH44NN471K03L LQH44NN471K03K
